What' s the meaning of HV bolt?

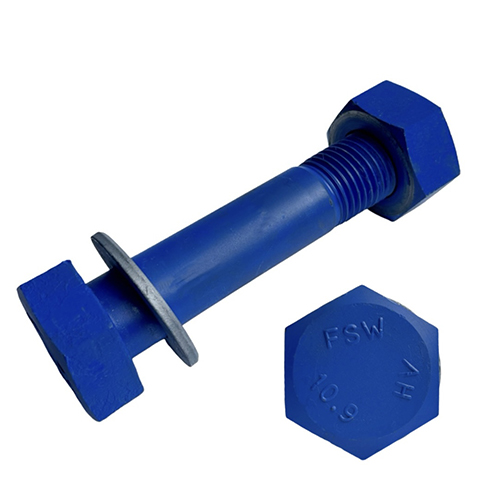

HV bolts usually are hex bolts with headmark HV, which comes from the German words 'Hochfest Vorgespannt'. HV bolts are usually preloaded bolting assemblies including structural bolts EN 14399-4, nuts and washers which are widely used in preloaded steel constructions.
What the HV set consists of?
The HV set consists of the following bolt, nut and washers:
- 1pc HV 10.9 hexagon head screw, hot dip galvanized, in accordance with EN 14399–4
- 1pc hexagonal nut HV 10, hot dip galvanized, in accordance with standard EN 14399–4
- 2 or 3pcs HV 300–370 HV washers, hot dip galvanized, in accordance with EN 14399–6
| HV Bolt, 10.9, EN14399-4 | HV Nut, 10, EN14399-4 | HV Washers, 300HV, EN14399-6 |
| M12 x 30-120 | M12 | M12 |
| M16 x 35-150 | M16 | M16 |
| M20 x 50-170 | M20 | M20 |
| M24 x 55-160 | M24 | M24 |
| M27 x 60-160 | M27 | M27 |
| M30 x 80-180 | M30 | M30 |
| M36 x 90-200 | M36 | M36 |
The HV bolts, nuts and washers composing the HV sets can be found in EN14399-4 and EN14399-6. Fastenwell as one of the top HV bolts set manufatcurer in China, we are CE certified and CE marking available for each shipment, both EN 14399 and EN15048 are available in our factory.
Where are most HV bolt assemblies used?
The EN 14399 standard has been developed for high strength prestressed fasteners, so HV bolt, nuts and washers assemlies are widely used in construction applications which require pre-loading bolts assemblies. With our past 15 years of fabricating and exporting HV bolt assemblies, most applications are in the field of construction projects like steel structures, commercial or industrial buiding, bridges, wind turbines, railway and road construction etc.
Fastenwell manufacture and export HV bolts, grade 10.9 and hot dip galvanized according to EN 10684 with minimum 50 microns thickness, which have an excellent corrosion resistance to provide protection for long years, even in an aggressive atmosphere in most construction applications.
What is the difference between HR and HV?
While some customers may confused when first came us with HR or HV bolts, the designations HV and HR are both apply to pre-loaded bolt sets, class 10.9. The abbreviation HV comes from the German term 'Hochfest Vorgespannt', while the term HR stands for 'High Resistance', both are surve the same purpose in metal construction projects.
What is the DIN equivalent of EN 14399-4 bolt?
EN 14399-4 bolts are structural bolts, which equivalent to DIN standard structural bolt DIN6914. Both EN 14399-4 bolts and DIN6914 structural bolts are used in most construction and industrial applications like steel structures, automotive, heavy equipments etc, for their high tensile strength and durability. EN 14399-4 bolts, grade 10.9 and hot dip galvanized are one of our best bolts in regular production and exporting business.
Ningbo Fastenwell manufacture and supply both HV bolts and HR bolts as per standard EN 14399-3, EN 14399-4, as well as SB bolts EN 15048, grade 8.8 and grade 10.9 and hot dip galvanized coating for struture constructions and industrial applications. CE certificates available. If you are looking for HV bolts, HR bolts or SB bolts EN15048 bolting assemblies, please feel free to contact us by email info@fastenwell.cn. We look forward to provide the best support for your projects.
